1885583 | Phoenix Contact
Cable gland, PG21, 33 mm, Clamping range 8.5 to 9 mm, IP65, gray, 1885583
Unit Price (€ / pc.)
6.8544 € *
Standard delivery time from the manufacturer is: On Request
Cable gland, 1885583, Phoenix Contact

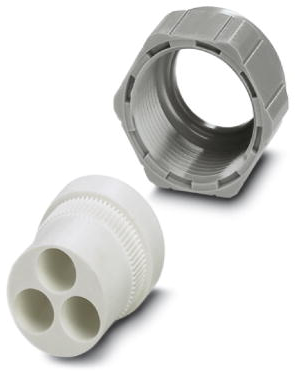

Half screw connection Pg21, Made of plastic, Consisting of rubber seal with several holes 3x9mm and one pressure screw, for cable screw connection support VC-M-KV-PG21.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | cable gland | |
| Thread size | PG21 | |
| min. clamping range | 8.5 mm | |
| max. clamping range | 9 mm | |
| spanner size | 33 mm | |
| Length | 31 mm | |
| Degree of protection (IP) | IP65 | |
| Material | plastic | |
| Colour | gray | |
| min. operating temperature | -20 °C | |
| max. operating temperature | 100 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 39269097 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
