1885570 | Phoenix Contact
Cable gland, PG21, 33 mm, Clamping range 6.5 to 7 mm, IP65, gray, 1885570
Unit Price (€ / pc.)
6.8544 € *
Standard delivery time from the manufacturer is: On Request
Cable gland, 1885570, Phoenix Contact

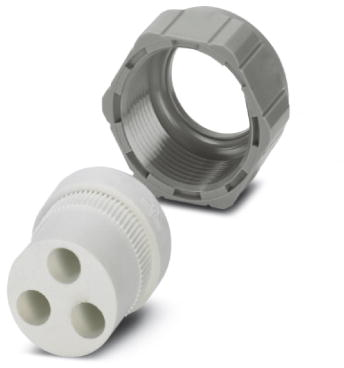

Half screw connection Pg21, Made of plastic, Consisting of rubber seal with several holes 3x7mm and one pressure screw, for cable screw connection support VC-M-KV-PG21.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. clamping range | 7 mm | |
| min. clamping range | 6.5 mm | |
| Colour | gray | |
| spanner size | 33 mm | |
| Degree of protection (IP) | IP65 | |
| Thread size | PG21 | |
| Material | plastic | |
| max. operating temperature | 100 °C | |
| min. operating temperature | -20 °C | |
| Product type | cable gland | |
| Length | 31 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
| Country of origin | PL |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
