1885444 | Phoenix Contact
Cable gland, PG16, 27 mm, Clamping range 6.5 to 7 mm, IP65, gray, 1885444
Unit Price (€ / pc.)
4.9623 € *
Standard delivery time from the manufacturer is: On Request

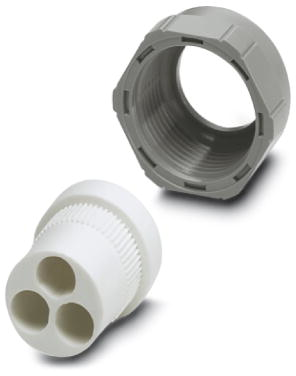

Half screw connection, 1885444, Phoenix Contact
Half screw connection Pg16, Made of plastic, Consisting of rubber seal with several holes 3x7mm and one pressure screw, for cable screw connection support VC-M-KV-PG16.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| spanner size | 27 mm | |
| Colour | gray | |
| Degree of protection (IP) | IP65 | |
| min. operating temperature | -20 °C | |
| max. operating temperature | 100 °C | |
| Material | plastic | |
| max. clamping range | 7 mm | |
| min. clamping range | 6.5 mm | |
| Length | 24 mm | |
| Thread size | PG16 | |
| Product type | cable gland |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
| Country of origin | PL |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
