1854857 | Phoenix Contact

Half cable gland, PG16, 24 mm, Clamping range 11.5 to 15.5 mm, IP67, 1854857

Order No.: 62P4989
EAN: 4017918146047
MPN:
1854857
VC-M-KV-PG16(11,5-15,5)
Series: VC-M
1854857 Phoenix Contact Cable Glands
Image may differ
Unit Price (€ / pc.)
3.689 € *
Available in 10 days: 4 pcs. - if ordered today
Total Price:
3.69 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
3.689 €

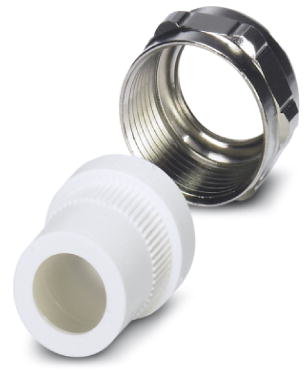

Half screw connection, 1854857, Phoenix Contact

Half screw connection Pg16, Made of metal, Consisting of rubber seal with one hole and one pressure screw, for type 1 housings, Cable 11.5-15.5 mm.

Technical specifications
Filter Property Value
Material metal
Length 24.7 mm
Product type half cable gland
min. operating temperature -40 °C
spanner size 24 mm
Degree of protection (IP) IP67
Thread size PG16
max. clamping range 15.5 mm
min. clamping range 11.5 mm
max. operating temperature 125 °C
Logistics
Property Value
Customs tariff number 74153300
Country of origin PL
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
