1646201 | Phoenix Contact

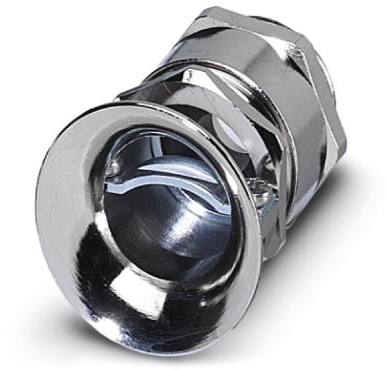

Cable gland, M32, 40/41 mm, Clamping range 20 to 30 mm, IP65, silver, 1646201
Unit Price (€ / pc.)
23.4787 € *
Available in 5 Days: 124 pcs. - if ordered today
Cable gland, 1646201, Phoenix Contact
Metal screw connection with cable bend protection and strain relief, Thread length: 8 mm, Cable sealing area: 18-27 mm, Clamping area: 20-30 mm, SW 40, Screw connection: M32.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. clamping range | 30 mm | |
| min. clamping range | 20 mm | |
| Colour | silver | |
| spanner size | 40/41 mm | |
| Degree of protection (IP) | IP65 | |
| Thread size | M32 | |
| Material | brass, nickel-plated | |
| max. operating temperature | 80 °C | |
| min. operating temperature | -20 °C | |
| Product type | cable gland | |
| Length | 51 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 74153300 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
