1646162 | Phoenix Contact
Cable gland, M32, 40/42 mm, Clamping range 19 to 27 mm, IP65, silver, 1646162
Unit Price (€ / pc.)
25.4422 € *
Available in 5 Days: 110 pcs. - if ordered today

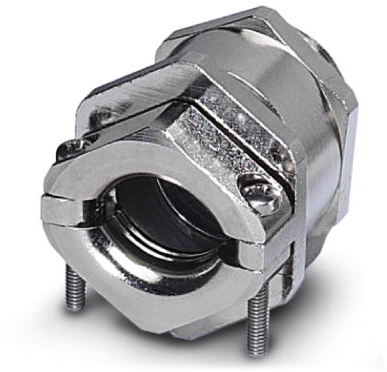

Cable gland, 1646162, Phoenix Contact
Metal screw connection with strain relief clamp, Thread length: 8 mm, Cable sealing area: 18-27 mm, Clamping area: 19-30 mm, SW 40, Screw connection: M32.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| spanner size | 40/42 mm | |
| Length | 43 mm | |
| min. operating temperature | -20 °C | |
| Thread size | M32 | |
| Degree of protection (IP) | IP65 | |
| max. operating temperature | 80 °C | |
| Material | brass, nickel-plated | |
| min. clamping range | 19 mm | |
| Product type | cable gland | |
| Colour | silver | |
| max. clamping range | 27 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 74153300 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
