1645998 | Phoenix Contact

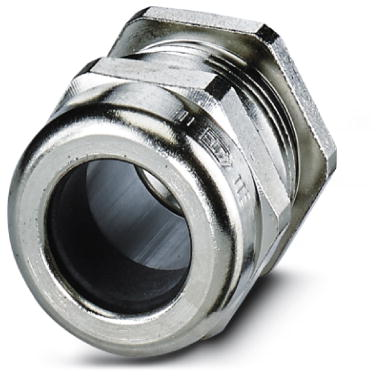

Cable gland, M20, 27 mm, Clamping range 11 to 16 mm, IP68, silver, 1645998

Order No.: 60P8566
EAN: 4017918941260
MPN:
1645998
HC-M-KV-M20(11-16)
Series: HC-M
1645998 Phoenix Contact Cable Glands
Image may differ
Unit Price (€ / pc.)
14.5894 € *
Available in 5 Days: 174 pcs. - if ordered today
Total Price:
364.74 € *
*incl. VAT plus shipping costs
Subject to prior sale
25 pcs.
14.5894 €

Cable gland, 1645998, Phoenix Contact

Metal screw connection up to 5 bar, Thread length: 6 mm, Cable diameter: 11-16 mm, WAF 27, Screw connection: M20.

Technical specifications
Filter Property Value
Colour silver
Thread size M20
max. clamping range 16 mm
Degree of protection (IP) IP68
Length 35.5 mm
max. operating temperature 100 °C
min. operating temperature -30 °C
spanner size 27 mm
Material brass, nickel-plated
Product type cable gland
min. clamping range 11 mm
Logistics
Property Value
Country of origin DE
Customs tariff number 74198090
Compliance
Property Value
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
