1636509 | Phoenix Contact

Cable gland, M50, 50/54 mm, Clamping range 7.5 to 8 mm, IP65, silver, 1636509

Order No.: 62P3269
EAN: 4046356028233
MPN:
1636509
KV-M-M50-GD-( 8)
Series: KV-M
1636509 Phoenix Contact Cable Glands
Image may differ
Unit Price (€ / pc.)
39.8769 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
39.88 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
39.8769 €

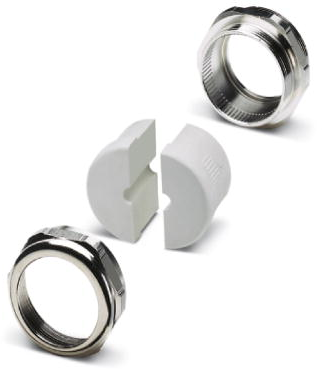

Cable gland, 1636509, Phoenix Contact

M50 cable screw connection, Metal, Panel feed-through for data plug, with separable grommet, 1x8 mm hole diameter, Inside diameter 37 mm.

Technical specifications
min. operating temperature -40 °C
max. operating temperature 125 °C
Material brass, nickel-plated
Colour silver
Product type cable gland
max. clamping range 8 mm
Degree of protection (IP) IP65
spanner size 50/54 mm
min. clamping range 7.5 mm
Length 39 mm
Thread size M50
Logistics
Customs tariff number 74122000
Country of origin DE
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
