1424542 | Phoenix Contact

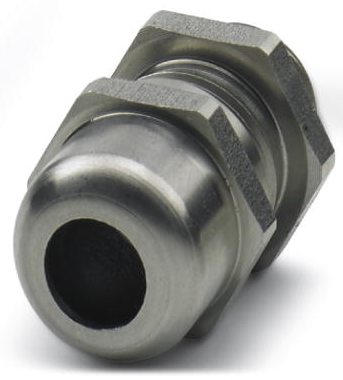

Cable gland, M16, 22 mm, Clamping range 5 to 10 mm, IP68, silver, 1424542
Unit Price (€ / pc.)
32.1538 € *
Standard delivery time from the manufacturer is: 1 Week
Cable gland, 1424542, Phoenix Contact
Cable gland, Material: Stainless steel 1.4305, External cable diameter 5-10 mm, Shielding: no, Connecting thread: M16x1.5, Color: silver, with O-ring.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| spanner size | 22 mm | |
| Colour | silver | |
| Degree of protection (IP) | IP68 | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 100 °C | |
| Material | stainless steel | |
| max. clamping range | 10 mm | |
| min. clamping range | 5 mm | |
| Length | 35 mm | |
| Thread size | M16 | |
| Product type | cable gland |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 73269098 |
| Country of origin | TR |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
