1424534 | Phoenix Contact

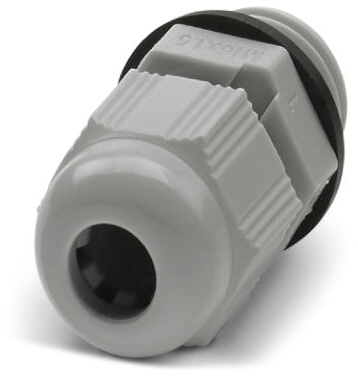

Cable gland, M20, 24 mm, Clamping range 6 to 11 mm, IP67, light gray, 1424534

Order No.: 62P1116
EAN: 4055626374390
MPN:
1424534
G-INVEN-M20-M67N-PNES-LG
Series: G-INVEN
1424534 Phoenix Contact Cable Glands
Image may differ
Unit Price (€ / pc.)
6.9972 € *
Available in 5 Days: 10 pcs. - if ordered today
Total Price:
7.00 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
6.9972 €

Cable gland, 1424534, Phoenix Contact

Cable gland, Material: PA, External cable diameter 6-11 mm, Shielding: no, Connecting thread: M20x1.5, Color: light grey RAL 7035, with pressure compensation element and flat gasket.

Features

  • Prevents low pressure forming in the housing
  • Resistant to water and dirt
  • Reduces the formation of condensation
Technical specifications
Filter Property Value
spanner size 24 mm
Colour light gray
Degree of protection (IP) IP67
min. operating temperature -20 °C
max. operating temperature 100 °C
Material PA
max. clamping range 11 mm
min. clamping range 6 mm
Length 40 mm
Thread size M20
Product type cable gland
Logistics
Property Value
Customs tariff number 39269097
Country of origin TR
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
