1424533 | Phoenix Contact
Cable gland, M16, 19 mm, Clamping range 4 to 7 mm, IP67, light gray, 1424533
Unit Price (€ / pc.)
5.6049 € *
Standard delivery time from the manufacturer is: 13 Weeks

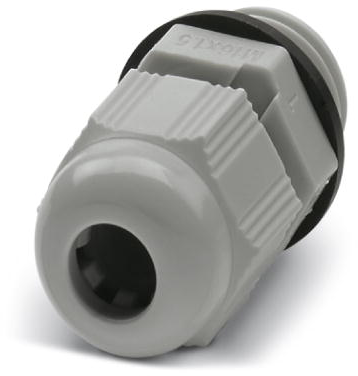

Cable gland, 1424533, Phoenix Contact
Cable gland, Material: PA, External cable diameter 4-7 mm, Shielding: no, Connecting thread: M16x1.5, Color: light grey RAL 7035, with pressure compensation element and flat gasket.
Features
- Prevents low pressure forming in the housing
- Resistant to water and dirt
- Reduces the formation of condensation
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. clamping range | 7 mm | |
| Material | PA | |
| Length | 35.5 mm | |
| spanner size | 19 mm | |
| Product type | cable gland | |
| Thread size | M16 | |
| Degree of protection (IP) | IP67 | |
| max. operating temperature | 100 °C | |
| Colour | light gray | |
| min. clamping range | 4 mm | |
| min. operating temperature | -20 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
| Country of origin | TR |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
