1424526 | Phoenix Contact

Cable gland, M16, 17/18 mm, Clamping range 4 to 8 mm, IP69, silver, 1424526

Order No.: 65P1489
EAN: 4055626374314
MPN:
1424526
G-INS-M16-T68N-NNES-S
Series: G-INS
1424526 Phoenix Contact Cable Glands
Image may differ
Unit Price (€ / pc.)
3.1297 € *
Available in 10 days: 430 pcs. - if ordered today
Total Price:
3.13 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
3.1297 €

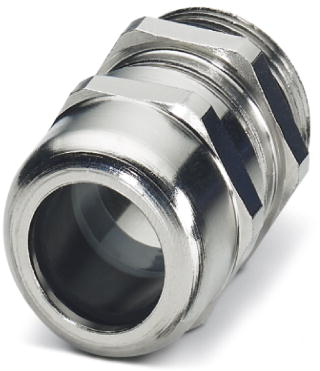

Cable gland, 1424526, Phoenix Contact

Cable gland, Material: Nickel-plated brass, External cable diameter 4-8 mm, Shielding: no, Connecting thread: M16x1.5, Color: silver, with O-ring.

Technical specifications
Filter Property Value
Material brass, nickel-plated
Colour silver
Length 30 mm
Product type cable gland
min. operating temperature -40 °C
spanner size 17/18 mm
Degree of protection (IP) IP69
Thread size M16
max. clamping range 8 mm
min. clamping range 4 mm
max. operating temperature 100 °C
Logistics
Property Value
Customs tariff number 74198090
Country of origin TR
Compliance
Property Value
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
