1424468 | Phoenix Contact

Cable gland, M25, 29 mm, Clamping range 10 to 17 mm, IP66, black, 1424468

Order No.: 62P1068
EAN: 4055626375588
MPN:
1424468
G-ESIS-M25-S68N-PEPDS-BK
Series: G-ESIS
1424468 Phoenix Contact Cable Glands
Image may differ
Unit Price (€ / pc.)
3.6295 € *
Available in 10 days: 16 pcs. - if ordered today
Total Price:
3.63 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
3.6295 €

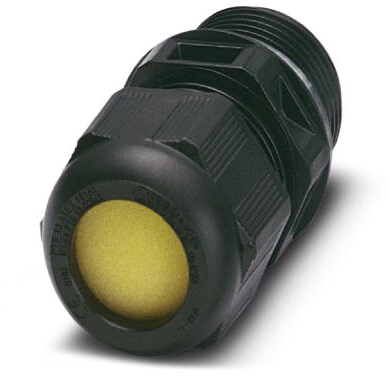

Cable gland, 1424468, Phoenix Contact

Cable gland, Material: PA, Application: Ex, External cable diameter 10-17 mm, Shielding: no, Connecting thread: M25x1.5, Color: jet black RAL 9005, with flat gasket.

Features

  • Glow-wire test
  • Weatherproof sealing material
  • Halogen-free
Technical specifications
Filter Property Value
Material PA
Colour black
Length 38 mm
Product type cable gland
min. operating temperature -40 °C
spanner size 29 mm
Degree of protection (IP) IP66
Thread size M25
max. clamping range 17 mm
min. clamping range 10 mm
max. operating temperature 75 °C
Logistics
Property Value
Customs tariff number 39269097
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
