1415193 | Phoenix Contact
Cable gland, M25, 29 mm, Clamping range 9 to 17 mm, IP68, silver, 1415193
Unit Price (€ / pc.)
30.2022 € *
Standard delivery time from the manufacturer is: 4 Weeks

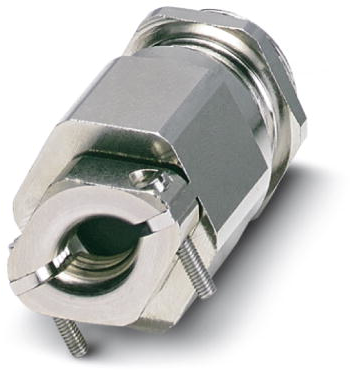

Cable gland, 1415193, Phoenix Contact
Cable gland, Material: Nickel-plated brass, External cable diameter 9-17 mm, Shielding: no, Connecting thread: M25x1.5, Color: silver, with external strain relief, with O-ring.
Features
- Weatherproof sealing material
- Halogen-free
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | silver | |
| min. operating temperature | -40 °C | |
| max. clamping range | 17 mm | |
| min. clamping range | 9 mm | |
| Product type | cable gland | |
| Material | brass, nickel-plated | |
| max. operating temperature | 100 °C | |
| Degree of protection (IP) | IP68 | |
| spanner size | 29 mm | |
| Length | 42 mm | |
| Thread size | M25 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 74198090 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
