1415183 | Phoenix Contact

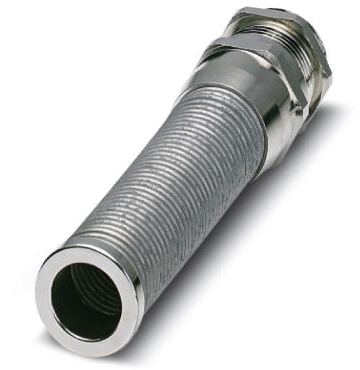

Cable gland, with bend protection, M25, 29 mm, Clamping range 9 to 17 mm, IP68, silver, 1415183
Unit Price (€ / pc.)
31.4874 € *
Standard delivery time from the manufacturer is: 7 Weeks
Cable gland, 1415183, Phoenix Contact
Cable gland, Material: Nickel-plated brass, External cable diameter 9-17 mm, Shielding: no, Connecting thread: M25x1.5, Color: silver, with bend protection sleeve, with O-ring.
Features
- Weatherproof sealing material
- Halogen-free
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | silver | |
| spanner size | 29 mm | |
| Material | brass, nickel-plated | |
| Product type | cable gland | |
| Degree of protection (IP) | IP68 | |
| max. operating temperature | 100 °C | |
| min. operating temperature | -40 °C | |
| Version | with bend protection | |
| Thread size | M25 | |
| min. clamping range | 9 mm | |
| Length | 120 mm | |
| max. clamping range | 17 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 74198090 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
