1415181 | Phoenix Contact
Cable gland with bend protection, M32, 36 mm, Clamping range 13 to 21 mm, IP68, black, 1415181
Order No.: 60P8379
EAN: 4055626038124
MPN:
1415181
G-INB-M32-M68N-PEPDS-BK
Unit Price (€ / pc.)
4.2126 € *
Available: 0 pcs.
Leadtime: On Request **

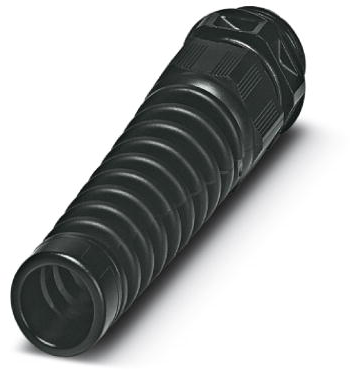

Cable gland, 1415181, Phoenix Contact
Cable gland, Material: PA, External cable diameter 13-21 mm, Shielding: no, Connecting thread: M32x1.5, Color: jet black RAL 9005, with bend protection sleeve.
Features
- Glow-wire test
- Weatherproof sealing material
- Halogen-free
Technical specifications
| Version | cable gland with bend protection | |
| Colour | black | |
| Thread size | M32 | |
| Length | 138 mm | |
| Material | polyamide | |
| max. clamping range | 21 mm | |
| max. operating temperature | 100 °C | |
| min. clamping range | 13 mm | |
| min. operating temperature | -40 °C | |
| spanner size | 36 mm | |
| Degree of protection (IP) | IP68 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 39269097 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
