1415180 | Phoenix Contact

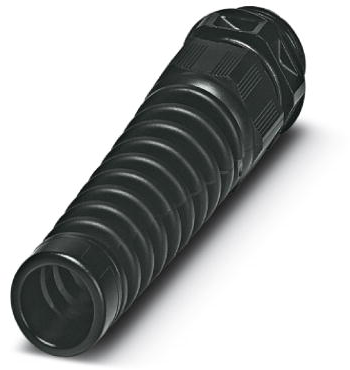

Cable gland with bend protection, M25, 29 mm, Clamping range 9 to 17 mm, IP68/IP69, black, 1415180
Order No.: 60P8376
EAN: 4055626038117
MPN:
1415180
G-INB-M25-M68N-PEPDS-BK
Unit Price (€ / pc.)
3.4272 € *
Available: 10 pcs.
Leadtime: On Request **
Total Price:
3.43 € *
Price list
Quantity
Price per unit*
1 pcs.
3.4272 €
10 pcs.
3.2368 €
100 pcs.
2.8203 €
250 pcs.
2.7132 €
1000 pcs.
2.5466 €
*incl. VAT plus shipping costs
**Subject to prior sale
Cable gland, 1415180, Phoenix Contact
Cable gland, Material: PA, External cable diameter 9-17 mm, Shielding: no, Connecting thread: M25x1.5, Color: jet black RAL 9005, with bend protection sleeve.
Features
- Glow-wire test
- Weatherproof sealing material
- Halogen-free

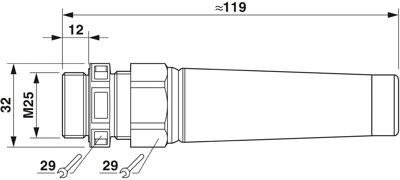

Technical specifications
| Version | cable gland with bend protection | |
| Colour | black | |
| Thread size | M25 | |
| Length | 113 mm | |
| Material | polyamide | |
| max. clamping range | 17 mm | |
| max. operating temperature | 100 °C | |
| min. clamping range | 9 mm | |
| min. operating temperature | -40 °C | |
| spanner size | 29 mm | |
| Degree of protection (IP) | IP68/IP69 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 39269097 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
