1415177 | Phoenix Contact

Cable gland, with bend protection, M12, 16 mm, Clamping range 3 to 7 mm, IP68/IP69, black, 1415177

Order No.: 60P8368
EAN: 4055626038087
MPN:
1415177
G-INB-M12-S68N-PEPDS-BK
Series: G-INB

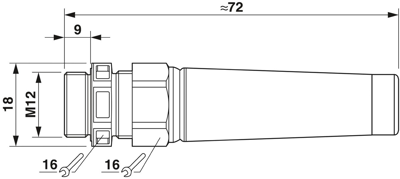

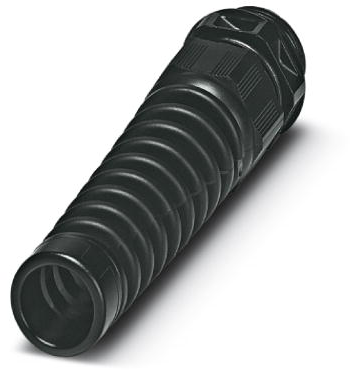

1415177 Phoenix Contact Cable Glands Image 1
1415177 Phoenix Contact Cable Glands Image 2
Image may differ
Unit Price (€ / pc.)
1.2614 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
1.26 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1.2614 €

Cable gland, 1415177, Phoenix Contact

Cable gland, Material: PA, external cable diameter 3-7 mm, Shielding: no, Connecting thread: M12x1.5, Color: jet black RAL 9005, with bend protection sleeve.

Features

  • Glow-wire test
  • Weatherproof sealing material
  • Halogen-free
Technical specifications
Thread size M12
max. operating temperature 100 °C
Degree of protection (IP) IP68/IP69
Length 72 mm
Colour black
min. operating temperature -40 °C
min. clamping range 3 mm
spanner size 16 mm
max. clamping range 7 mm
Product type cable gland
Version with bend protection
Material PA
Logistics
Customs tariff number 39269097
Country of origin DE
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
