1415176 | Phoenix Contact

Cable gland, with bend protection, M32, 36 mm, Clamping range 13 to 21 mm, IP68, light gray, 1415176

Order No.: 60P8380
EAN: 4055626038070
MPN:
1415176
G-INB-M32-M68N-PEPDS-LG
Series: G-INB
1415176 Phoenix Contact Cable Glands
Image may differ
Unit Price (€ / pc.)
4.2126 € *
Available in 5 Days: 5 pcs. - if ordered today
Total Price:
4.21 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
4.2126 €

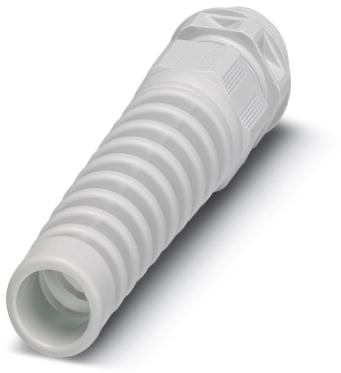

Cable gland, 1415176, Phoenix Contact

Cable gland, Material: PA, External cable diameter 13-21 mm, Shielding: no, Connecting thread: M32x1.5, Color: light grey RAL 7035, with bend protection sleeve.

Features

  • Glow-wire test
  • Weatherproof sealing material
  • Halogen-free
Technical specifications
Filter Property Value
Product type cable gland
min. operating temperature -40 °C
Version with bend protection
Degree of protection (IP) IP68
Thread size M32
Length 138 mm
max. clamping range 21 mm
spanner size 36 mm
max. operating temperature 100 °C
min. clamping range 13 mm
Material PA
Colour light gray
Logistics
Property Value
Country of origin DE
Customs tariff number 39269097
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
