1415175 | Phoenix Contact
Cable gland, with bend protection, M25, 29 mm, Clamping range 9 to 17 mm, IP68, light gray, 1415175
Unit Price (€ / pc.)
2.6299 € *
Standard delivery time from the manufacturer is: 7 Weeks
Cable gland, 1415175, Phoenix Contact

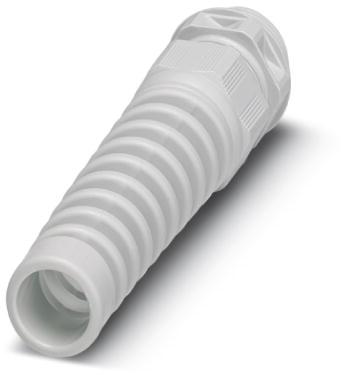

Cable gland, Material: PA, External cable diameter 9-17 mm, Shielding: no, Connecting thread: M25x1.5, Color: light grey RAL 7035, with bend protection sleeve.
Features
- Glow-wire test
- Weatherproof sealing material
- Halogen-free
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | light gray | |
| spanner size | 29 mm | |
| Material | PA | |
| Product type | cable gland | |
| Degree of protection (IP) | IP68 | |
| max. operating temperature | 100 °C | |
| min. operating temperature | -40 °C | |
| Version | with bend protection | |
| Thread size | M25 | |
| min. clamping range | 9 mm | |
| Length | 113 mm | |
| max. clamping range | 17 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 39269097 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
