1415174 | Phoenix Contact

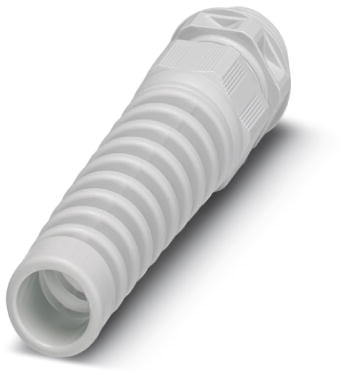

Cable gland with bend protection, M20, 24 mm, Clamping range 6 to 13 mm, IP68, light gray, 1415174
Order No.: 60P8374
EAN: 4055626038056
MPN:
1415174
G-INB-M20-S68N-PEPDS-LG
Unit Price (€ / pc.)
1.5232 € *
Available: 0 pcs.
Leadtime: On Request **
Cable gland, 1415174, Phoenix Contact
Cable gland, Material: PA, External cable diameter 6-13 mm, Shielding: no, Connecting thread: M20x1.5, Color: light grey RAL 7035, with bend protection sleeve.
Features
- Glow-wire test
- Weatherproof sealing material
- Halogen-free
Technical specifications
| Version | cable gland with bend protection | |
| Colour | light gray | |
| Thread size | M20 | |
| Length | 103 mm | |
| Material | polyamide | |
| max. clamping range | 13 mm | |
| max. operating temperature | 100 °C | |
| min. clamping range | 6 mm | |
| min. operating temperature | -40 °C | |
| spanner size | 24 mm | |
| Degree of protection (IP) | IP68 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 39269097 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
