1415172 | Phoenix Contact

Cable gland, with bend protection, M16, 20 mm, Clamping range 4.5 to 10 mm, IP68, light gray, 1415172

Order No.: 60P8371
EAN: 4055626038049
MPN:
1415172
G-INB-M16-S68N-PEPDS-LG
Series: G-INB
1415172 Phoenix Contact Cable Glands
Image may differ
Unit Price (€ / pc.)
1.3328 € *
Available in 10 days: 40 pcs. - if ordered today
Total Price:
1.33 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1.3328 €

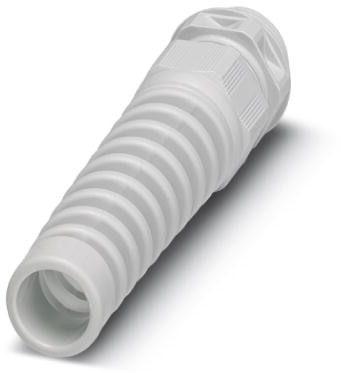

Cable gland, 1415172, Phoenix Contact

Cable gland, Material: PA, External cable diameter 4.5-10 mm, Shielding: no, Connecting thread: M16x1.5, Color: light grey RAL 7035, with bend protection sleeve.

Features

  • Glow-wire test
  • Weatherproof sealing material
  • Halogen-free
Technical specifications
Filter Property Value
Version with bend protection
Length 82 mm
min. clamping range 4.5 mm
min. operating temperature -40 °C
Colour light gray
Degree of protection (IP) IP68
Thread size M16
Material PA
max. operating temperature 100 °C
spanner size 20 mm
max. clamping range 10 mm
Product type cable gland
Logistics
Property Value
Country of origin DE
Customs tariff number 39269097
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
