1415169 | Phoenix Contact

Cable gland, M50, 55 mm, Clamping range 21 to 35 mm, IP66, silver, 1415169

Order No.: 60P8323
EAN: 4055626037981
MPN:
1415169
G-ESISEC-M50-L68L-NEPDS-S
Series: G-ESISEC
1415169 Phoenix Contact Cable Glands
Image may differ
Unit Price (€ / pc.)
111.9314 € *
Available in 10 days: 16 pcs. - if ordered today
Total Price:
111.93 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
111.9314 €

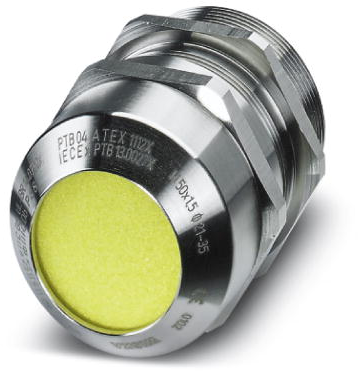

Cable gland, 1415169, Phoenix Contact

Cable gland, Material: Nickel-plated brass, Application: Ex, External cable diameter 21-35 mm, Shielding: yes, Connecting thread: M50x1.5, Color: silver, with O-ring.

Features

  • Dust protection during storage and transport
  • Weatherproof sealing material
  • Halogen-free
Technical specifications
Thread size M50
Material brass, nickel-plated
max. operating temperature 75 °C
spanner size 55 mm
max. clamping range 35 mm
Product type cable gland
Length 57 mm
min. clamping range 21 mm
min. operating temperature -40 °C
Degree of protection (IP) IP66
Colour silver
Logistics
Country of origin DE
Customs tariff number 74198090
Compliance
Date of RoHS guidelines 3/31/15
RoHS conform Yes
Substance description Lead
SVHC free No
