1415149 | Phoenix Contact
Cable gland, M16, 20 mm, Clamping range 5 to 10 mm, IP66, silver, 1415149
Unit Price (€ / pc.)
15.7913 € *
Available in 10 days: 283 pcs. - if ordered today

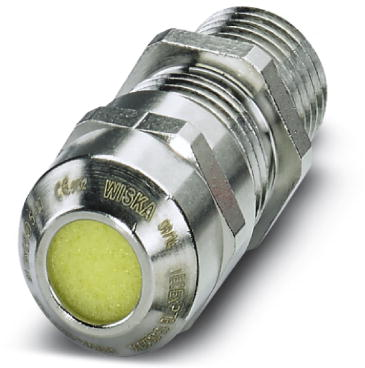

Cable gland, 1415149, Phoenix Contact
Cable gland, Material: Nickel-plated brass, Application: Ex, External cable diameter 5-10 mm, Shielding: yes, Connecting thread: M16x1.5, Color: silver, with O-ring.
Features
- Dust protection during storage and transport
- Weatherproof sealing material
- Halogen-free
Technical specifications
| Filter | Property | Value |
|---|---|---|
| min. operating temperature | -40 °C | |
| Product type | cable gland | |
| max. operating temperature | 75 °C | |
| Degree of protection (IP) | IP66 | |
| max. clamping range | 10 mm | |
| Material | brass, nickel-plated | |
| Length | 33 mm | |
| min. clamping range | 5 mm | |
| Colour | silver | |
| spanner size | 20 mm | |
| Thread size | M16 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 74198090 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
