1415146 | Phoenix Contact

Cable gland, M50, 55 mm, Clamping range 21 to 35 mm, IP66, silver, 1415146

Order No.: 60P8343
EAN: 4055626037905
MPN:
1415146
G-ESIS-M50-L68L-NEPDS-S
Series: G-ESIS
1415146 Phoenix Contact Cable Glands

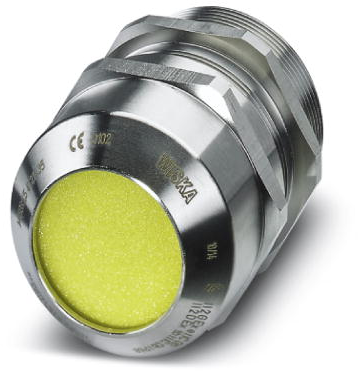

Image may differ
Unit Price (€ / pc.)
61.4159 € *
Available in 10 days: 10 pcs. - if ordered today
Total Price:
61.42 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
61.4159 €

Cable gland, 1415146, Phoenix Contact

Cable gland, Material: Nickel-plated brass, Application: Ex, External cable diameter 21-35 mm, Shielding: no, Connecting thread: M50x1.5, Color: silver, with O-ring.

Features

  • Dust protection during storage and transport
  • Weatherproof sealing material
  • Halogen-free
Technical specifications
Thread size M50
Material brass, nickel-plated
max. operating temperature 75 °C
spanner size 55 mm
max. clamping range 35 mm
Product type cable gland
Length 57 mm
min. clamping range 21 mm
min. operating temperature -40 °C
Degree of protection (IP) IP66
Colour silver
Logistics
Country of origin DE
Customs tariff number 74198090
Compliance
Date of RoHS guidelines 3/31/15
RoHS conform Yes
Substance description Lead
SVHC free No
