1415126 | Phoenix Contact

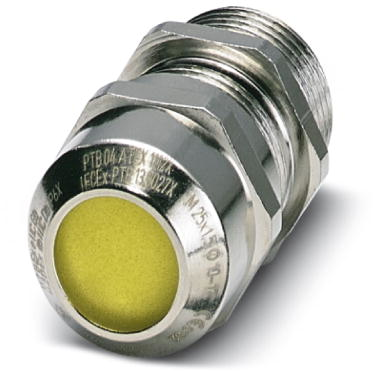

Cable gland, M25, 29 mm, Clamping range 10 to 17 mm, IP66, silver, 1415126
Unit Price (€ / pc.)
15.7913 € *
Standard delivery time from the manufacturer is: 3 Weeks
Cable gland, 1415126, Phoenix Contact
Cable gland, Material: Nickel-plated brass, Application: Ex, External cable diameter 10-17 mm, Shielding: no, Connecting thread: M25x1.5, Color: silver, with O-ring.
Features
- Dust protection during storage and transport
- Weatherproof sealing material
- Halogen-free
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | brass, nickel-plated | |
| Thread size | M25 | |
| max. operating temperature | 75 °C | |
| max. clamping range | 17 mm | |
| Length | 38 mm | |
| Product type | cable gland | |
| min. clamping range | 10 mm | |
| min. operating temperature | -40 °C | |
| spanner size | 29 mm | |
| Degree of protection (IP) | IP66 | |
| Colour | silver |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 74198090 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
