1415124 | Phoenix Contact

Cable gland, M16, 20 mm, Clamping range 5 to 10 mm, IP66, silver, 1415124

Order No.: 60P8330
EAN: 4055626037851
MPN:
1415124
G-ESIS-M16-S68N-NEPDS-S
Series: G-ESIS
1415124 Phoenix Contact Cable Glands
Image may differ
Unit Price (€ / pc.)
8.8179 € *
Available in 10 days: 10 pcs. - if ordered today
Total Price:
8.82 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
8.8179 €

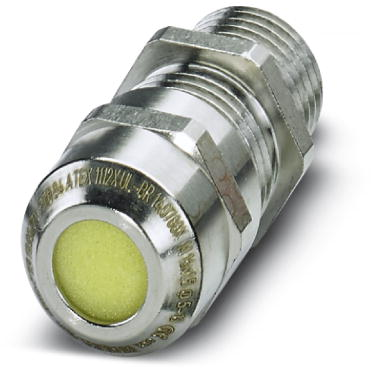

Cable gland, 1415124, Phoenix Contact

Cable gland, Material: Nickel-plated brass, Application: Ex, External cable diameter 5-10 mm, Shielding: no, Connecting thread: M16x1.5, Color: silver, with O-ring.

Features

  • Dust protection during storage and transport
  • Weatherproof sealing material
  • Halogen-free
Technical specifications
Thread size M16
spanner size 20 mm
Material brass, nickel-plated
Colour silver
Degree of protection (IP) IP66
min. operating temperature -40 °C
max. operating temperature 75 °C
Length 33 mm
Product type cable gland
min. clamping range 5 mm
max. clamping range 10 mm
Logistics
Customs tariff number 74198090
Country of origin DE
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
Substance description Lead
