1415116 | Phoenix Contact

Cable gland, M16, 20 mm, Clamping range 4.5 to 9 mm, IP66, blue/black, 1415116

Order No.: 60P8329
EAN: 4055626037776
MPN:
1415116
G-ESIS-M16-S68L-PEPDS-BL
Series: G-ESIS
1415116 Phoenix Contact Cable Glands
Image may differ
Unit Price (€ / pc.)
2.2253 € *
Available in 10 days: 50 pcs. - if ordered today
Total Price:
2.23 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
2.2253 €

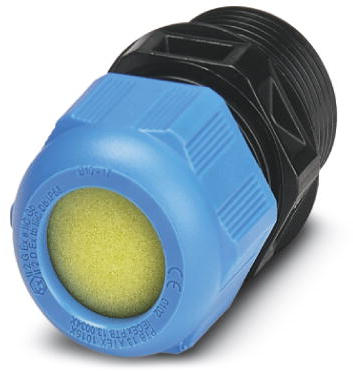

Cable gland, 1415116, Phoenix Contact

Cable gland, Material: PA, Application: Ex, External cable diameter 4.5-9 mm, Shielding: no, Connecting thread: M16x1.5, Color: black/blue, with flat gasket.

Features

  • Glow-wire test
  • Weatherproof sealing material
  • Halogen-free
Technical specifications
Colour blue/black
Degree of protection (IP) IP66
max. clamping range 9 mm
Length 37 mm
Product type cable gland
min. operating temperature -40 °C
Material PA
spanner size 20 mm
max. operating temperature 75 °C
min. clamping range 4.5 mm
Thread size M16
Logistics
Country of origin DE
Customs tariff number 39269097
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
