1415108 | Phoenix Contact
Cable gland, M20, 24 mm, Clamping range 7 to 13 mm, IP66, black, 1415108
Unit Price (€ / pc.)
2.3562 € *
Available in 5 Days: 303 pcs. - if ordered today

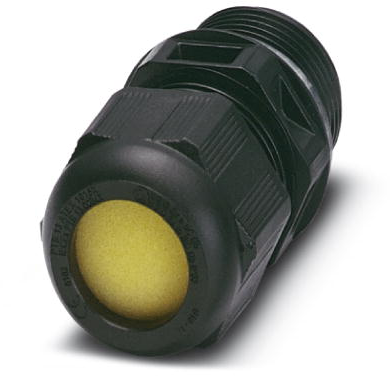

Cable gland, 1415108, Phoenix Contact
Cable gland, Material: PA, Application: Ex, external cable diameter 7-13 mm, Shielding: no, Connecting thread: M20x1.5, Color: black, with flat gasket.
Features
- Glow-wire test
- Weatherproof sealing material
- Halogen-free
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | PA | |
| Thread size | M20 | |
| max. operating temperature | 75 °C | |
| max. clamping range | 13 mm | |
| Length | 41 mm | |
| Product type | cable gland | |
| min. clamping range | 7 mm | |
| min. operating temperature | -40 °C | |
| spanner size | 24 mm | |
| Degree of protection (IP) | IP66 | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 39269097 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
