1414663 | Phoenix Contact

Cable gland, M20, 24 mm, Clamping range 6 to 13 mm, IP66, silver, 1414663

Order No.: 62P1972
EAN: 4055626031149
MPN:
1414663
HC-B-GB-M20-ER-AL
Series: HC-B
1414663 Phoenix Contact Cable Glands
Image may differ
Unit Price (€ / pc.)
41.1145 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
41.11 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
41.1145 €

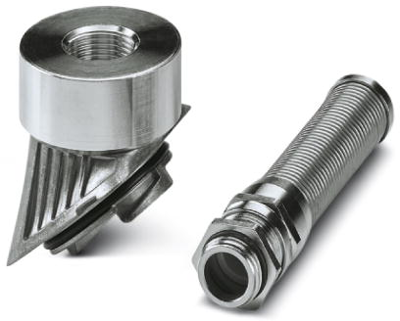

Cable gland, 1414663, Phoenix Contact

Set consisting of: EVO metal adapter 1414256, Metal screw connection with bending armor rod 1415182, M20.

Technical specifications
Filter Property Value
Colour silver
Thread size M20
max. clamping range 13 mm
Degree of protection (IP) IP66
max. operating temperature 100 °C
min. operating temperature -40 °C
spanner size 24 mm
Material brass, nickel-plated
Product type cable gland
min. clamping range 6 mm
Logistics
Property Value
Country of origin DE
Customs tariff number 85389099
Compliance
Property Value
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
