1414651 | Phoenix Contact
Cable gland, M20, 24 mm, Clamping range 6 to 13 mm, IP66, black, 1414651
Unit Price (€ / pc.)
   7.3304 €  *
   Available in 5 Days: 23 pcs. - if ordered today

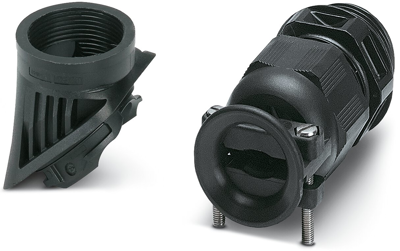

 Cable gland, 1414651, Phoenix Contact
Set consisting of: EVO plastic adapter 1414243 and plastic screw connection with terminal block 1415189, M20.
 Technical specifications

 | Filter | Property | Value |
|---|---|---|
| max. operating temperature | 100 °C | |
| spanner size | 24 mm | |
| min. operating temperature | -40 °C | |
| Colour | black | |
| Material | PA | |
| Thread size | M20 | |
| min. clamping range | 6 mm | |
| max. clamping range | 13 mm | |
| Degree of protection (IP) | IP66 | |
| Product type | cable gland |
 Download
  Logistics

 | Property | Value |
|---|---|
| Customs tariff number | 39269097 |
| Country of origin | PL |
 Compliance

 | Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
