1411203 | Phoenix Contact
Cable gland, PG42, 58 mm, Clamping range 30 to 38 mm, IP68, silver, 1411203
Unit Price (€ / pc.)
69.4246 € *
Available in 5 Days: 10 pcs. - if ordered today

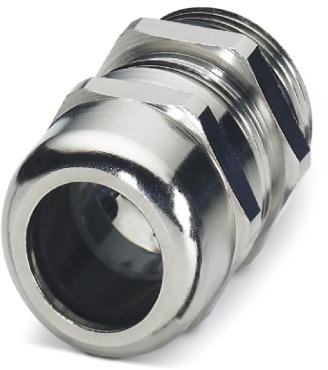

Cable gland, 1411203, Phoenix Contact
Cable gland, Material: Nickel-plated brass, External cable diameter 30-38 mm, Shielding: yes, Connecting thread: Pg42, Color: silver, with O-ring.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | brass, nickel-plated | |
| Thread size | PG42 | |
| min. operating temperature | -40 °C | |
| Product type | cable gland | |
| Length | 60 mm | |
| spanner size | 58 mm | |
| Degree of protection (IP) | IP68 | |
| Colour | silver | |
| max. operating temperature | 100 °C | |
| min. clamping range | 30 mm | |
| max. clamping range | 38 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 74198090 |
| Country of origin | TR |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
| Substance description | Lead |
