1411198 | Phoenix Contact

Cable gland, PG13.5, 22 mm, Clamping range 6 to 12 mm, IP68, silver, 1411198

Order No.: 60P8395
EAN: 4046356923293
MPN:
1411198
G-INSEC-PG13,5-S68N-NNES-S
Series: G-INSEC

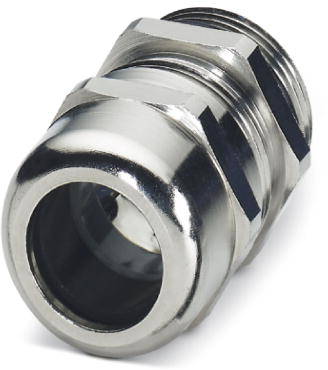

1411198 Phoenix Contact Cable Glands Image 1

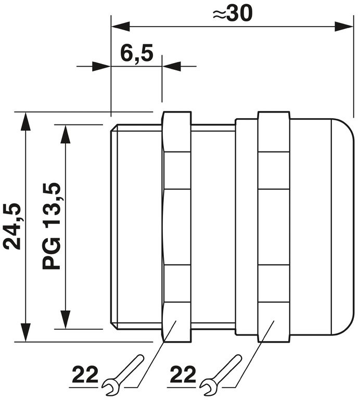

1411198 Phoenix Contact Cable Glands Image 2
Image may differ
Unit Price (€ / pc.)
9.5676 € *
Available in 10 days: 300 pcs. - if ordered today
Total Price:
9.57 € *
Price list
Quantity
Price per unit*
1 pcs.
9.5676 €
10 pcs.
8.8060 €
50 pcs.
8.0087 €
100 pcs.
7.2114 €
*incl. VAT plus shipping costs
Subject to prior sale

Cable gland, 1411198, Phoenix Contact

Cable gland, Material: Nickel-plated brass, External cable diameter 6-12 mm, Shielding: yes, Connecting thread: Pg13.5, Color: silver, with O-ring.

Technical specifications
max. operating temperature 100 °C
max. clamping range 12 mm
Length 30 mm
min. clamping range 6 mm
Colour silver
Material brass, nickel-plated
Thread size PG13.5
min. operating temperature -40 °C
spanner size 22 mm
Degree of protection (IP) IP68
Product type cable gland
Logistics
Customs tariff number 85369010
Country of origin TR
Compliance
SVHC free No
Substance description Lead
RoHS conform Yes
Date of RoHS guidelines 3/31/15
