1411197 | Phoenix Contact
Cable gland, PG11, 20 mm, Clamping range 5 to 10 mm, IP68, silver, 1411197
Unit Price (€ / pc.)
6.0214 € *
Available in 10 days: 300 pcs. - if ordered today

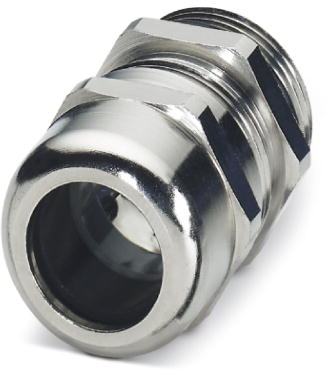

Cable gland, 1411197, Phoenix Contact
Cable gland, Material: Nickel-plated brass, External cable diameter 5-10 mm, Shielding: yes, Connecting thread: Pg11, Color: silver, with O-ring.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| min. clamping range | 5 mm | |
| max. clamping range | 10 mm | |
| Colour | silver | |
| Product type | cable gland | |
| Material | brass, nickel-plated | |
| max. operating temperature | 100 °C | |
| Length | 30 mm | |
| spanner size | 20 mm | |
| Degree of protection (IP) | IP68 | |
| min. operating temperature | -40 °C | |
| Thread size | PG11 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TR |
| Customs tariff number | 74198090 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
