1411195 | Phoenix Contact

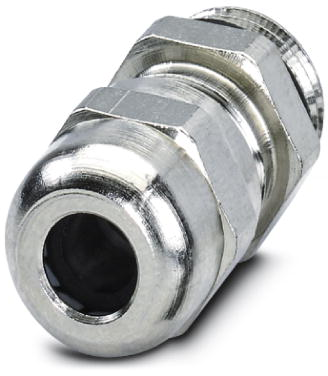

Cable gland, PG7, 14 mm, Clamping range 3 to 6.5 mm, IP68, silver, 1411195
Unit Price (€ / pc.)
   6.8187 €  *
   Available in 5 Days: 194 pcs. - if ordered today
 Cable gland, 1411195, Phoenix Contact
Cable gland, Material: Nickel-plated brass, External cable diameter 3-6.5 mm, Shielding: yes, Connecting thread: Pg7, Color: silver, with O-ring.
 Technical specifications

 | Filter | Property | Value |
|---|---|---|
| max. clamping range | 6.5 mm | |
| spanner size | 14 mm | |
| Material | brass, nickel-plated | |
| Colour | silver | |
| max. operating temperature | 100 °C | |
| min. clamping range | 3 mm | |
| Thread size | PG7 | |
| Product type | cable gland | |
| Length | 27 mm | |
| min. operating temperature | -40 °C | |
| Degree of protection (IP) | IP68 |
 Download
  Logistics

 | Property | Value |
|---|---|
| Country of origin | TR |
| Customs tariff number | 74198090 |
 Compliance

 | Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
