1411192 | Phoenix Contact
Cable gland, M40, 43 mm, Clamping range 19 to 27 mm, IP68, silver, 1411192
Unit Price (€ / pc.)
21.9198 € *
Available: 3 pcs.
Available in 10 days: 395 pcs. - if ordered today

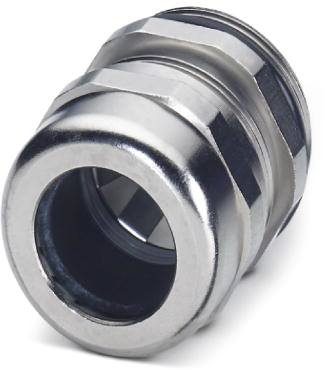

Cable gland, 1411192, Phoenix Contact
Cable gland, Material: Nickel-plated brass, External cable diameter 19-27 mm, Shielding: yes, Connecting thread: M40x1.5, Color: silver, with O-ring.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| spanner size | 43 mm | |
| max. clamping range | 27 mm | |
| max. operating temperature | 100 °C | |
| Colour | silver | |
| Product type | cable gland | |
| Degree of protection (IP) | IP68 | |
| min. operating temperature | -40 °C | |
| min. clamping range | 19 mm | |
| Thread size | M40 | |
| Material | brass, nickel-plated | |
| Length | 41 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 74198090 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
