1411185 | Phoenix Contact
Cable gland, 1NPT, 40/43 mm, Clamping range 18 to 25 mm, IP68, silver, 1411185
Unit Price (€ / pc.)
23.2288 € *
Available in 5 Days: 97 pcs. - if ordered today

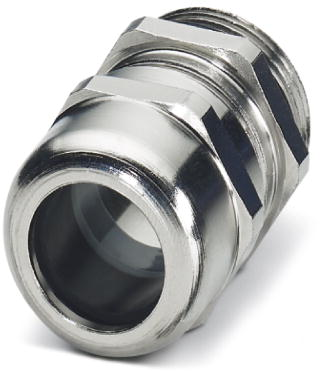

Cable gland, 1411185, Phoenix Contact
Cable gland, Material: Nickel-plated brass, External cable diameter 18-25 mm, Shielding: no, Connecting thread: 1"-NPT, Color: silver, with O-ring.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | brass, nickel-plated | |
| Thread size | 1NPT | |
| max. operating temperature | 100 °C | |
| max. clamping range | 25 mm | |
| Length | 56 mm | |
| Product type | cable gland | |
| min. clamping range | 18 mm | |
| min. operating temperature | -40 °C | |
| spanner size | 40/43 mm | |
| Degree of protection (IP) | IP68 | |
| Colour | silver |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TR |
| Customs tariff number | 74198090 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
