1411183 | Phoenix Contact
Cable gland, 1/2NPT, 22 mm, Clamping range 10 to 14 mm, IP68, silver, 1411183
Unit Price (€ / pc.)
8.6275 € *
Available in 5 Days: 539 pcs. - if ordered today

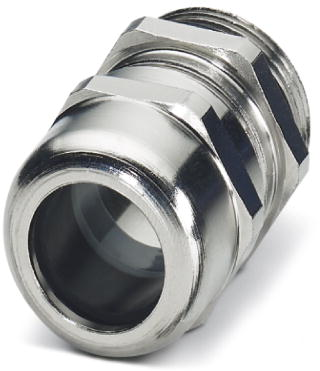

Cable gland, 1411183, Phoenix Contact
Cable gland, Material: Nickel-plated brass, External cable diameter 10-14 mm, Shielding: no, Connecting thread: 1/2" NPT, Color: silver, with O-ring.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | brass, nickel-plated | |
| Thread size | 1/2NPT | |
| max. operating temperature | 100 °C | |
| max. clamping range | 14 mm | |
| Length | 39 mm | |
| Product type | cable gland | |
| min. clamping range | 10 mm | |
| min. operating temperature | -40 °C | |
| spanner size | 22 mm | |
| Degree of protection (IP) | IP68 | |
| Colour | silver |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TR |
| Customs tariff number | 74198090 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
