1411169 | Phoenix Contact

Cable gland, M63, 64/68 mm, Clamping range 34 to 44 mm, IP69, silver, 1411169

Order No.: 60P8427
EAN: 4046356923033
MPN:
1411169
G-INS-M63-L68N-NNES-S
Series: G-INS
1411169 Phoenix Contact Cable Glands
Image may differ
Unit Price (€ / pc.)
53.0145 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
53.01 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
53.0145 €

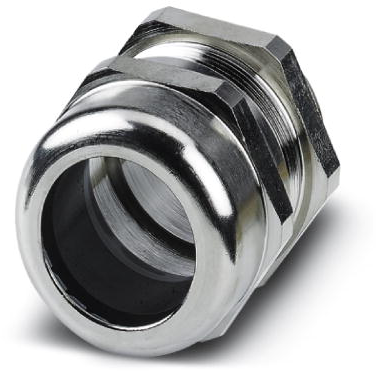

Cable gland, 1411169, Phoenix Contact

Cable gland, Material: Nickel-plated brass, External cable diameter 34-44 mm, Shielding: no, Connecting thread: M63x1.5, Color: silver, with O-ring.

Technical specifications
Degree of protection (IP) IP69
min. operating temperature -40 °C
Thread size M63
max. clamping range 44 mm
max. operating temperature 100 °C
min. clamping range 34 mm
spanner size 64/68 mm
Material brass, nickel-plated
Colour silver
Product type cable gland
Length 65 mm
Logistics
Country of origin TR
Customs tariff number 74198090
Compliance
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
