1411095 | Phoenix Contact
Cable gland, M32, 46 mm, Clamping range 23.7 to 33.9 mm, IP66, silver, 1411095
Unit Price (€ / pc.)
271.2248 € *
Available in 5 Days: 5 pcs. - if ordered today

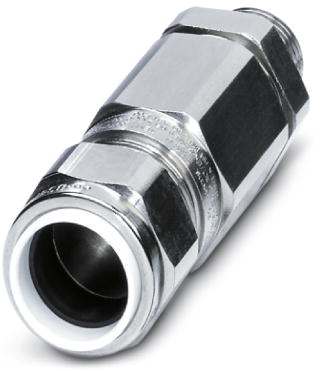

Cable gland, 1411095, Phoenix Contact
Cable gland, Material: Stainless steel 316L, Application: Ex, External cable diameter 23.7-33.9 mm, Shielding: yes, Connecting thread: M32x1.5, Color: silver.
Features
- Armor connected via PE cone
- Weatherproof sealing material
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | stainless steel | |
| Thread size | M32 | |
| max. operating temperature | 130 °C | |
| max. clamping range | 33.9 mm | |
| Length | 84 mm | |
| Product type | cable gland | |
| min. clamping range | 23.7 mm | |
| min. operating temperature | -60 °C | |
| spanner size | 46 mm | |
| Degree of protection (IP) | IP66 | |
| Colour | silver |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | GB |
| Customs tariff number | 73269098 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
