1411079 | Phoenix Contact
Cable gland, M32, 41 mm, Clamping range 17 to 26.3 mm, IP66, silver, 1411079
Unit Price (€ / pc.)
21.1463 € *
Standard delivery time from the manufacturer is: 7 Weeks

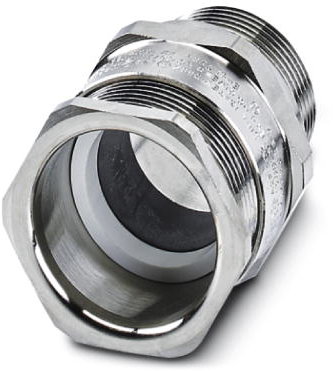

Cable gland, 1411079, Phoenix Contact
Cable gland, Material: Nickel-plated brass, Application: Ex, External cable diameter 17-26.3 mm, Shielding: no, Connecting thread: M32x1.5, Color: silver, Weatherproof sealing material.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | brass, nickel-plated | |
| Thread size | M32 | |
| max. operating temperature | 130 °C | |
| max. clamping range | 26.3 mm | |
| Length | 42 mm | |
| Product type | cable gland | |
| min. clamping range | 17 mm | |
| min. operating temperature | -60 °C | |
| spanner size | 41 mm | |
| Degree of protection (IP) | IP66 | |
| Colour | silver |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | GB |
| Customs tariff number | 74152900 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
