1076600 | Phoenix Contact
Cable gland, M25, 33 mm, Clamping range 3 to 7 mm, IP66, black, 1076600
Unit Price (€ / pc.)
9.9365 € *
Available in 10 days: 338 pcs. - if ordered today
Total Price:
9.94 € *
Price list
Quantity
Price per unit*
1 pcs.
9.9365 €
10 pcs.
9.1511 €
50 pcs.
8.3181 €
100 pcs.
7.4851 €
*incl. VAT plus shipping costs
Subject to prior sale

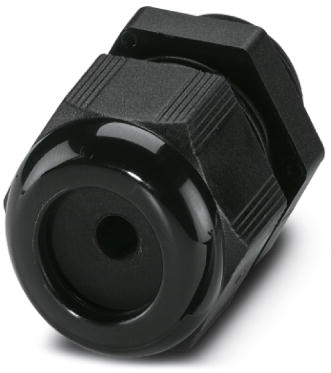

Cable gland, 1076600, Phoenix Contact
Plastic cable connection with slotted seal, for connector with pre-wired cable, IP66, M25 connection thread, clear width: 18.2 mm.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| spanner size | 33 mm | |
| max. operating temperature | 100 °C | |
| max. clamping range | 7 mm | |
| min. operating temperature | -20 °C | |
| Material | PA | |
| Degree of protection (IP) | IP66 | |
| Length | 47 mm | |
| min. clamping range | 3 mm | |
| Thread size | M25 | |
| Colour | black | |
| Product type | cable gland |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TR |
| Customs tariff number | 39269097 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
