2897758 | Phoenix Contact

Bus coupler, 2 Mbit/s, 24 VDC, 2897758

Order No.: 64P9312
EAN: 4046356157926
MPN:
2897758
IL EIP BK DI8 DO4 2TX-PAC
Series: IL EIP

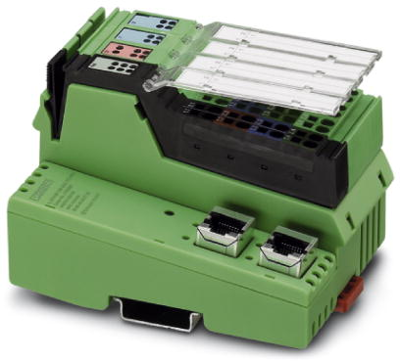

2897758 Phoenix Contact Bus coupler
Image may differ
Unit Price (€ / pc.)
586.9556 € *
Available in 5 Days: 35 pcs. - if ordered today
Total Price:
586.96 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
586.9556 €

Bus coupler, 2897758, Phoenix Contact

Inline, Bus coupler, EtherNet/IP, RJ45 jack, Digital inputs: 8, 24 VDC, Connection technology: 3-conductor, Digital outputs: 4, 24 VDC, 500 mA, Connection technology: 3-conductor, Transmission speed in the local bus: 500 kbps / 2 Mbps, Degree of protection: IP20, including Inline connectors and marking fields.

Features

  • Web-based management
  • Automatic detection of the transmission speed in the local bus (500 kbps or 2 Mbps)
Technical specifications
Filter Property Value
Version bus coupler
Interfaces ethernet
Data transmission rate 2000000 mb/s
Voltage 24 VDC
Width 80 mm
Height 119.8 mm
Depth 71.5 mm
Logistics
Property Value
Customs tariff number 85176200
Country of origin DE
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
