2702782 | Phoenix Contact

Bus coupler, 100 Mbit/s, 24 VDC, 2702782

Order No.: 64P8442
EAN: 4055626320533
MPN:
2702782
AXL F BK EIP EF
Series: Axioline F

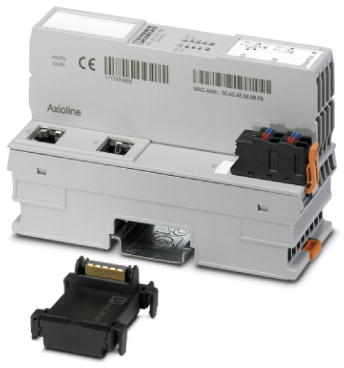

2702782 Phoenix Contact Bus coupler
Image may differ
Unit Price (€ / pc.)
638.911 € *
Available in 10 days: 59 pcs. - if ordered today
Total Price:
638.91 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
638.911 €

Bus coupler, 2702782, Phoenix Contact

Axioline F, Bus coupler, EtherNet/IP, RJ45 jack, Extended function, Transmission speed in the local bus: 100 Mbps, Degree of protection: IP20, including bus base module and Axioline F connector.

Features

  • 2 Ethernet ports (with integrated switch)
  • Rotary coding switches for setting the IP address assignment and other functions
  • Firmware can be updated
  • Typical cycle time of the Axioline F local bus is around 10 μs
  • Web-based management
  • Supports the operation of Axioline Smart Elements
  • Supports passive Smart Elements (firmware version 1.30 or later)
  • Supports IOL-CONF (firmware version 1.30 and later)
  • Supports Diag+
Technical specifications
Filter Property Value
Version bus coupler
Interfaces ethernet
Data transmission rate 100000000 mb/s
Voltage 24 VDC
Width 45 mm
Height 126.1 mm
Depth 74 mm
Logistics
Property Value
Country of origin DE
Customs tariff number 85176200
Compliance
Property Value
SVHC free No
Date of RoHS guidelines 3/31/15
Substance description Lead
RoHS conform Yes
