2702507 | Phoenix Contact
Bus coupler, 2 Mbit/s, 24 VDC, 2702507
Unit Price (€ / pc.)
306.8296 € *
Available in 10 days: 77 pcs. - if ordered today

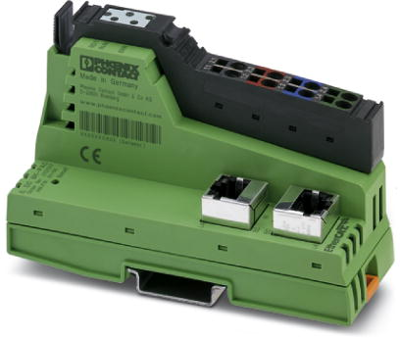

Bus coupler, 2702507, Phoenix Contact
Inline, Bus coupler, EtherCAT, RJ45 jack, Transmission speed in the local bus: 500 kbps / 2 Mbps, Degree of protection: IP20, including Inline connector and labeling field.
Features
- Automatic addressing
- Station mapped as a modular EtherCAT device using a modular device profile (MDP)
- Acyclic data communication (mailbox protocols)
- SafetyBridge V3 supported
- Firmware can be updated
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | bus coupler | |
| Interfaces | CANopen | |
| Data transmission rate | 2000000 mb/s | |
| Voltage | 24 VDC | |
| Width | 40 mm | |
| Height | 119.4 mm | |
| Depth | 71.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85176200 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
