2692380 | Phoenix Contact

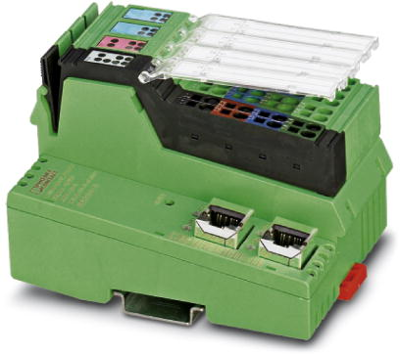

Bus coupler, 2692380, Phoenix Contact

Inline, Bus coupler, Sercos, RJ45 jack, Digital inputs: 8, 24 VDC, Connection technology: 3-conductor, Digital outputs: 4, 24 VDC, 500 mA, Connection technology: 3-conductor, Transmission speed in the local bus: 500 kbps / 2 Mbps, Degree of protection: IP20, including inline connectors, marking fields, and end plate.

Features

• 2 Ethernet ports (with integrated switch)
• Automatic detection of the transmission speed in the local bus (500 kbps or 2 Mbps)
• Minimum Sercos cycle time of 250 µs
• FSP-IO (Function Specific Profile-IO) for modular I/O devices
• Maximum of 6 realtime connections
• Hot plugging of participants in Sercos network
• Diagnostics trace
• Internet Protocol Services (IPS)
• Sercos specification V1.3.1
• Sercos diagnostic LED S and communication phase LED CP
