2403869 | Phoenix Contact

Bus coupler, 100 Mbit/s, 24 VDC, 2403869

Order No.: 65P1097
EAN: 4055626345826
MPN:
2403869
AXL F BK PN TPS
Series: Axioline F

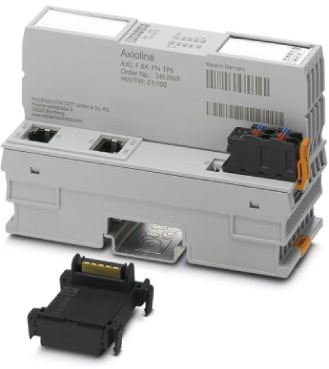

2403869 Phoenix Contact Bus coupler
Image may differ
Unit Price (€ / pc.)
444.2746 € *
Available in 10 days: 832 pcs. - if ordered today
Total Price:
444.27 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
444.2746 €

Bus coupler, 2403869, Phoenix Contact

Axioline F, Bus coupler, PROFINET, RJ45 jack, Transmission speed in the local bus: 100 Mbps, Degree of protection: IP20, including bus base module and Axioline F connector.

Features

  • 2 Ethernet ports (with integrated switch)
  • Conformance with PROFINET specification V2.3
  • Supports PROFIsafe
  • Supports PROFIenergy
  • Supports PROFINET S2 system redundancy (firmware version 1.30 or later)
  • PROFINET RT and IRT
  • Minimum cycle time of PROFINET for RT and IRT is 250 μs
  • Firmware can be updated
  • Runtime in bus coupler is negligible (almost 0 µs)
  • Typical cycle time of the Axioline F local bus is around 10 μs
  • Web-based management
  • Supports the operation of Axioline Smart Elements
  • Supports passive Smart Elements (firmware version 1.30 or later)
  • Supports IOL-CONF (firmware version 1.30 and later)
  • Supports Diag+
  • Safe analog value processing with SAFE AI and other components
Technical specifications
Version bus coupler
Interfaces PROFINET
Data transmission rate 100000000 mb/s
Voltage 24 VDC
Width 45 mm
Height 126.1 mm
Depth 74 mm
Logistics
Customs tariff number 85389091
Country of origin DE
Compliance
Substance description Lead
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
