2700677 | Phoenix Contact

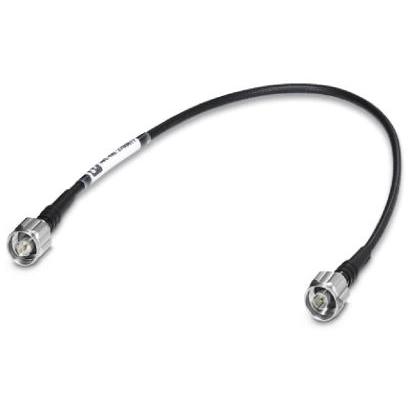

Coaxial cable, N plug (straight) to N plug (straight), 50 Ω, EF 142, grommet black, 500 mm, 2700677
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
113.4189 € *
Standard delivery time from the manufacturer is: On Request
Antenna cable, 2700677, Phoenix Contact
Antenna cable, outside diameter: 5 mm, inner conductor: stranded, Attenuation: 0.3 / 0.5 / 0.8 dB at 0.9 / 2.4 / 5.8 GHz, Connection: 2 x N (male), cable length: 0.5 m
Features
- Halogen-free
- Easy installation, thanks to flexible inner conductor
- Flame-retardant
- Oil-resistant
- UV resistant
- For outdoor installation
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection (1) | N plug (straight) | |
| Connection (2) | N plug (straight) | |
| Cable length | 500 mm | |
| Impedance | 50 Ω | |
| Cable type | EF 142 | |
| Cable protection bushing colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 85442000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Substance description | Lead |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
