2861399 | Phoenix Contact

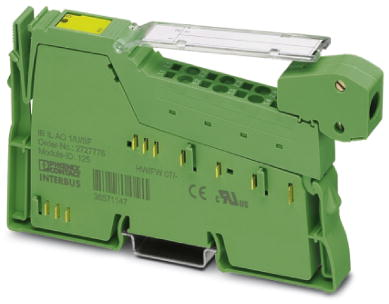

Inline terminal for series Inline, Outputs: 1, (W x H x D) 12.2 x 135 x 71.5 mm, 2861399
Unit Price (€ / pc.)
222.8751 € *
Available in 10 days: 224 pcs. - if ordered today
Analog module, 2861399, Phoenix Contact
Inline, Analog output terminal, Analog output: 1, 0 to 10 V, Connection technology: 2-conductor, Transmission speed in the local bus: 500 kbps, Extreme conditions version, Degree of protection: IP20, including Inline connectors and labeling field.
Features
- Process data update including conversion time of the digital/analog converter < 1 ms
- Measured value acquisition with a resolution of 16 bits
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | DIN rail | |
| Height | 135 mm | |
| Version | analog module | |
| Width | 12.2 mm | |
| Number of analogue outputs | 1 | |
| Suitable for | series Inline | |
| Depth | 71.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85389091 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
