2861302 | Phoenix Contact

Input module for inline station, Inputs: 2, (W x H x D) 12.2 x 136.8 x 71.5 mm, 2861302

Order No.: 64P9026
EAN: 4017918894245
MPN:
2861302
IB IL AI 2/SF-PAC
Series: IB IL
2861302 Phoenix Contact Analog Modules

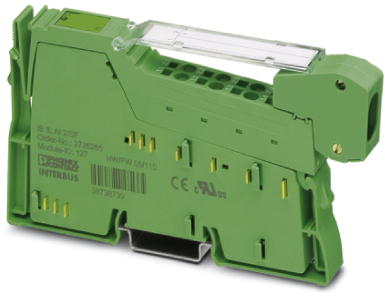

Image may differ
Unit Price (€ / pc.)
289.4913 € *
Available in 10 days: 239 pcs. - if ordered today
Total Price:
289.49 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
289.4913 €

Analog module, 2861302, Phoenix Contact

Inline, Analog input terminal, Analog inputs: 2, 0 to 10 V, -10 to 10 V, 0 to 20 mA, 4 to 20 mA, -20 to 20 mA, Connection technology: 2-conductor, Transmission speed in the local bus: 500 kbps, 3 dB base frequency at 230 Hz, Degree of protection: IP20, including Inline connector and labeling field.

Features

  • 2 analog single-ended signal inputs for the connection of either voltage or current signals
  • Connection of sensors in 2-conductor technology
  • Current ranges: 0 to 20 mA, 4 to 20 mA, ±20 mA
  • Voltage ranges: 0 to 10 V, ±10 V
  • The channels are parameterized independently of one another via the bus system
  • Measured values can be represented in four different formats
  • Resolution depends on the representation format and the measuring range
  • Process data update of both channels within a max. of 1.5 ms
Technical specifications
Filter Property Value
Depth 71.5 mm
Version input module
Height 136.8 mm
Number of analogue inputs 2
Suitable for inline station
Width 12.2 mm
Assembly DIN rail
Logistics
Property Value
Country of origin DE
Customs tariff number 85389091
Compliance
Property Value
RoHS conform Yes
Substance description Lead
Date of RoHS guidelines 3/31/15
SVHC free No
